On-site building data

Basic and essential data for fan layout and installation before purchases

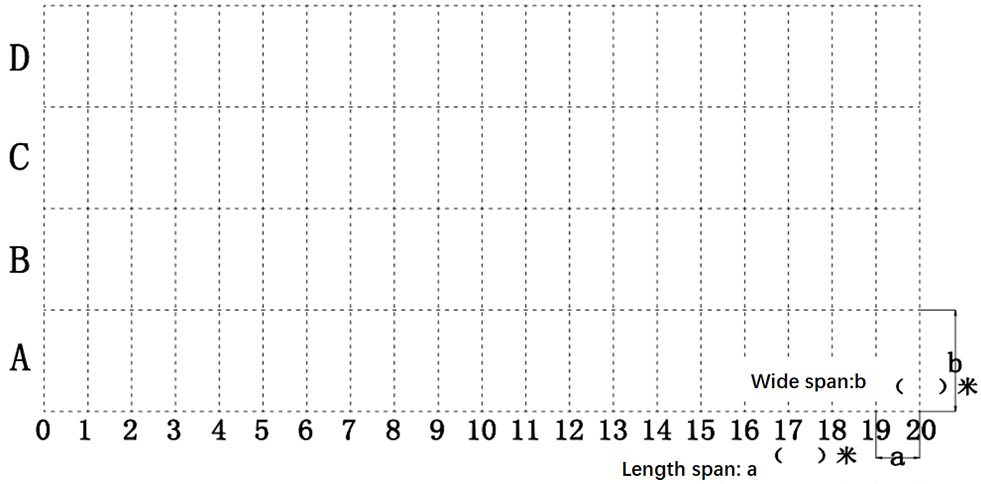

For length direction: overall length, qty. of span, length of each span;

For width direction: overall width, qty. of span, width of each span;

Layout, placement and qty. of units refer to <Basic Data>;

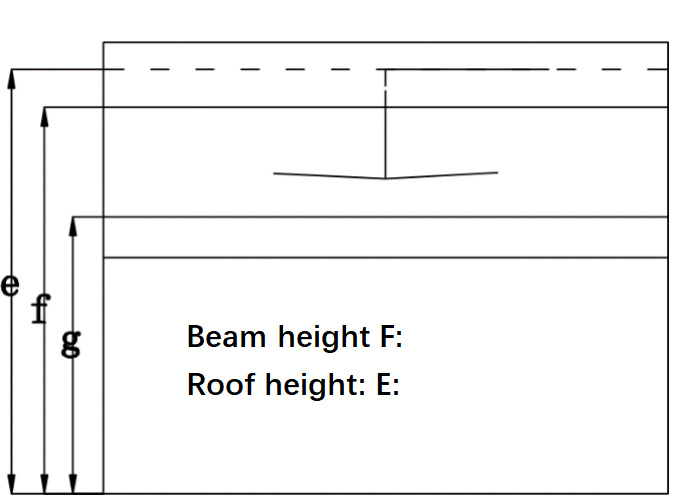

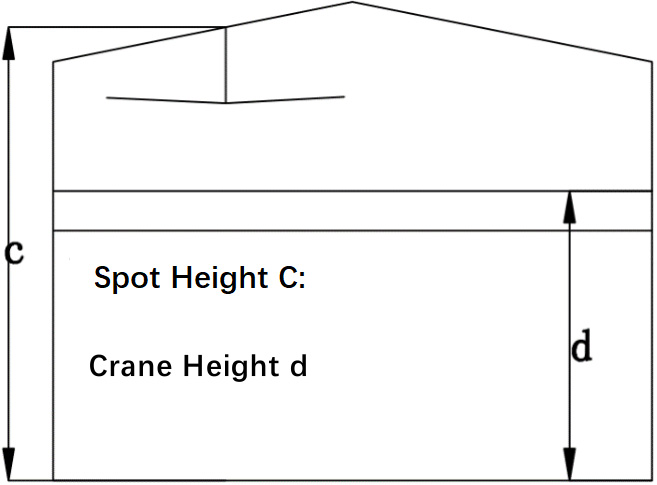

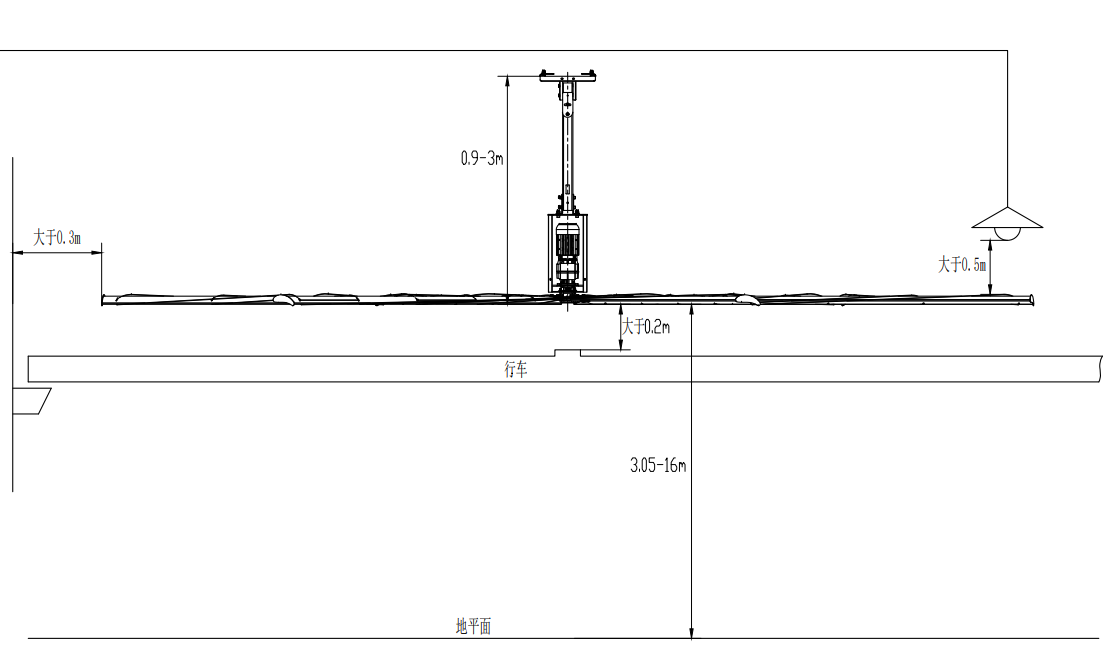

For height direction: height of the installing spot, crane installed? If yes, the clearance between the crane and I-beam and the clearance between crane and ground;

For concrete building, when the span is less than 10 meters, for economics, two spans could share one unit;

Confirming building structure □I-beam □ truss □ multi-level building □others

Other facilities on site: light, fire sprinkler pipe and CCTV etc. those facilities might interfere the placement;

It is not recommended to install fans directly above large, fixed equipment. Brick advises relocating the installation in such cases to avoid increasing future maintenance costs.
