Model

Clustered Pivot Fan HT-PVC-2.1

Wide-Span Pivot Fan HT-PVW-2.1

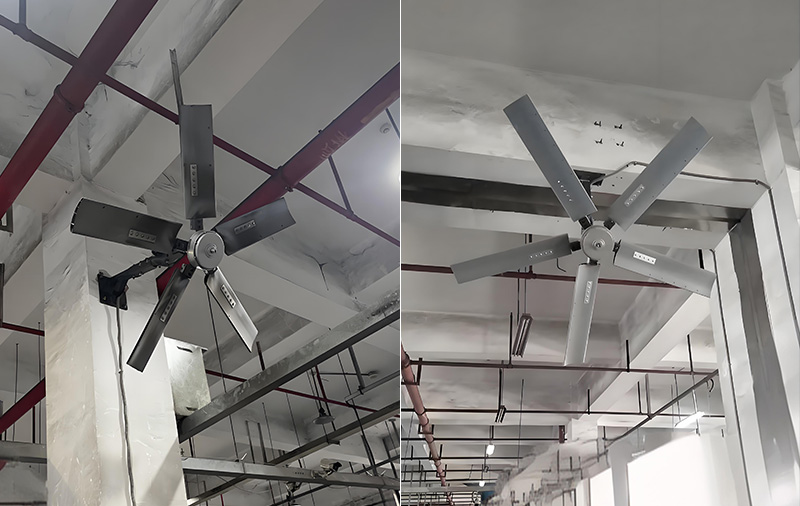

Wide-Span (Meshless) HT-PVM-1.1

diameter mm

2000

Max. speed rpm

240

Fan power kw

0.75

parameters

220V/1P, optional

Airflow throw distance and coverage area

For the clustered blade design, the airflow throw distance is ≥ 20 m. The airflow is concentrated along the axial direction within a central area approximately 5 meters in diameter.

For the wide-span blade design, the airflow covers an area of approximately 130° along the axial direction, with a throw distance of about 12 meters.

Overall weight

For clustered blade：≤ 160 kg

For wide-span blade：≤ 150 kg

For wide-span meshless ≤ 50 kg

Packing

Each fan is individually packaged in cartons, including:

a motor assembly and mount kits box;

a mesh box.

Key configurations

Motor ：PMSM motor

Control panel：integrated VFD regulator，wireless group control is optional

Clustered blade：5052H35 aluminum plate，thickness 2.5 mm, punched process

Wide-span blade：Al-Pc Complex Blade

Technical features

A) Initially offering two types of blades to suit different application scenarios.

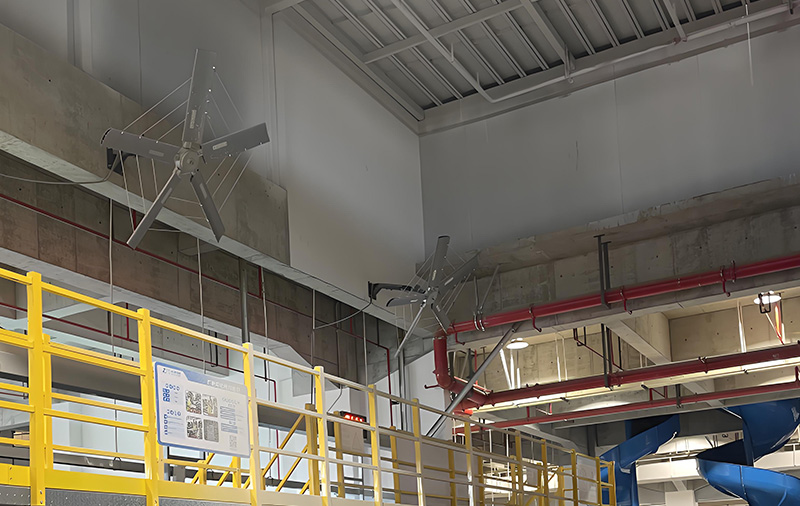

B) In compliance with the requirement of a minimum 3.1-meter clearance from fan blades to the ground for HVLS fans, we have introduced a meshless version for high installation, it delivers the same functionality and performance as normal Pivot Fan with protective mesh, but is lighter in weight and highly competitively priced.

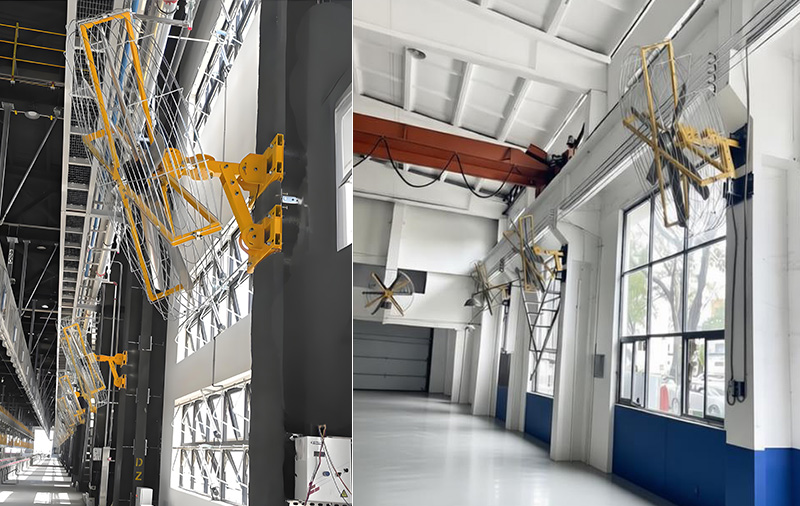

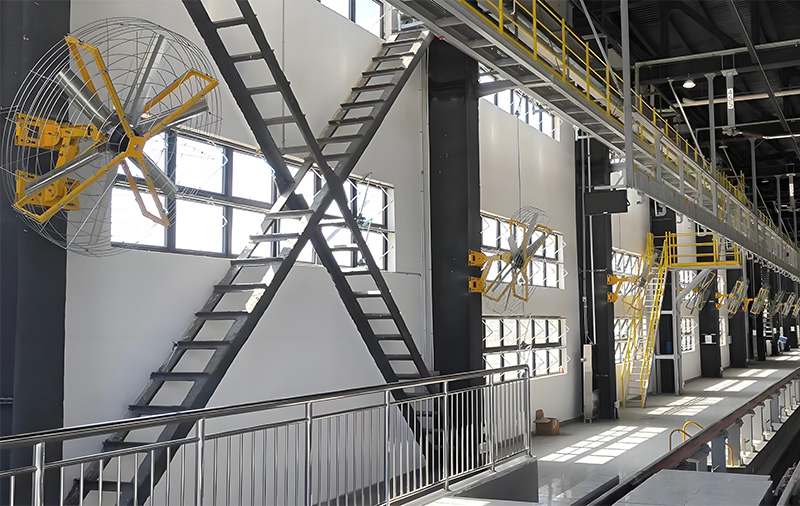

C) Available in both wall-mounted and roof-mounted installation options.
